Anybus Wireless Bolt CAN
Anybus Wireless Bolt ile aynı ünitede endüstriyel IP66/IP67 koruma sınıfına sahip konektör, iletişim işlemcisi ve entegre anten içeren Hepsi Bir Arada bir paket almış olursunuz
ÖZELLİKLER & AVANTAJLAR
- - CAN 2.0A/B (11/29 bit identifier)'den kablosuz ve TCP/IP'ye çevrim
- - J1939 ve CANopen desteği ve herhangi bir CAN protokolünün transparan transferi
- - Wi-Fi veya Bluetooth üzerinden kablosuz haberleşme
- - CAN kablosu yerine kullanım “CAN to wireless to CAN” 2xBolts kullanarak
- - Geniş baudrate desteği 10 kbps - 1000 kbps
- - 28 adede kadar özelleştirebilen CAN receive pass-through filters
- - Kablosuz veya Ethernet LAN üzerinden web tabanlı konfigürasyon

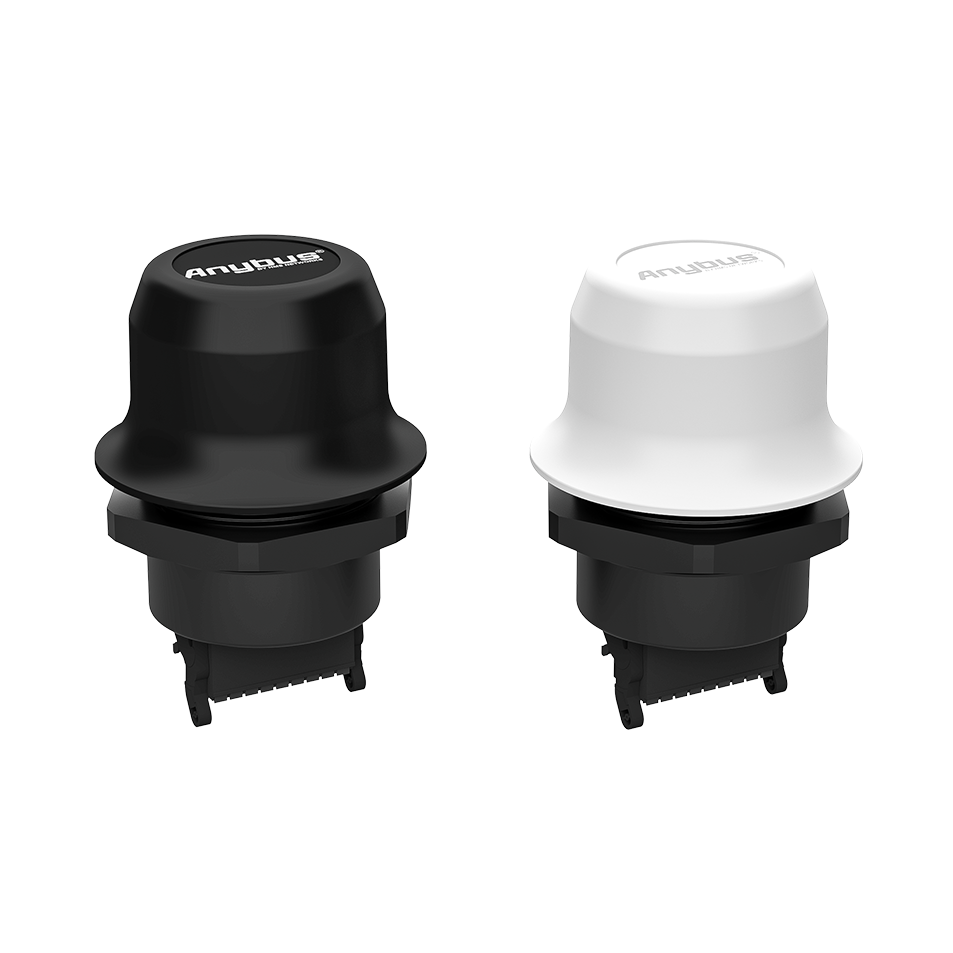

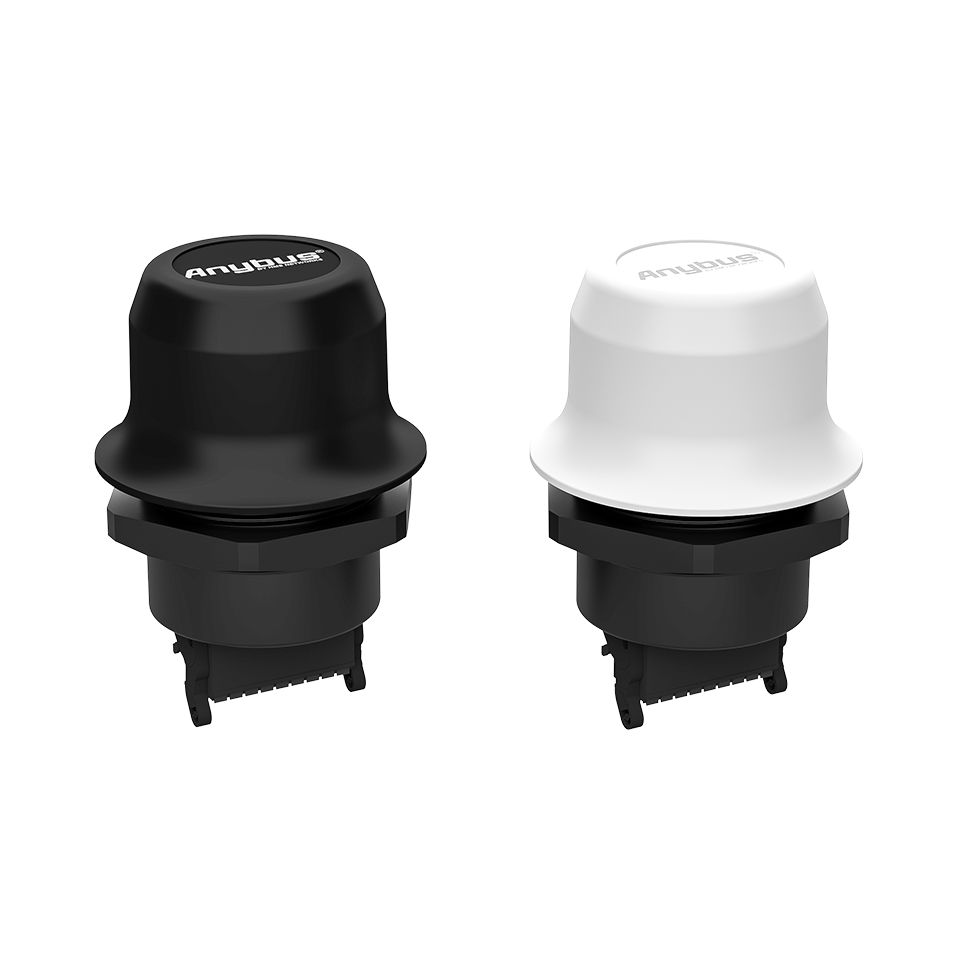

- - Doğrudan güneş ışığı altında siyaha kıyasla %30 daha yüksek çevre sıcaklığı sağlayan beyaz üst Sunbolt opsiyonu
- - Anybus Wireless Bridge ve Anybus Wireless Bolt Ethernet ile tam uyumluluk
- - konfigürasyon ve diyagnostik için CLI (Command Line Interface)
- - Individual baudrate support in a multi-node network
- Teknik Özellikler
| CAN arayüz |
CAN 2.0A/B (11/29 bit identifier). |
| Ethernet arayüz |
Ethernet: 10/100BASE-T with automatic MDI/MDIX auto cross-over detection. For configuration only. |
| WiFi arayüz |
Wireless standards: IEEE 802.11 a, b, g, n, d. |
| Bluetooth arayüz |
Wireless standards (profiles): PANU & NAP |
| Ölçüler |
Diameter: 68 mm. Height: 75 mm (95 mm including connector. Outside height: 41 mm) |
| Ağırlık |
81g |
| Sıcaklık Bolt (siyah) |
Shadow: -40 to +65 °C |
| Sıcaklık Sunbolt (beyaz) | Shadow and direct sunlight: -40 to +65 °C Storage temperature: -40 to +85 °C |
| Çıkış gücü | WiFi 18 dBm EIRP - Bluetooth 14 dBm EIRP - Bluetooth Low Energy 10 dBm EIRP All including antenna gain 3dBi |
| Besleme | 9-30 VDC (-5% +20%), Cranking 12V (ISO 7637-2:2011 pulse 4). Reverse polarity protection. |
| Enerji tüketimi | 0.7W idle, 1.7W max (54mA@24VDC with Wireless LAN and 36mA@24VDC with Bluetooth) |
| Materyal | Top: Valox 357X(f1) PBT/PC. Suitable for outdoor use with respect to exposure to ultraviolet light, water exposure and immersion in accordance with UL 476C. Bottom: Celanex: XFR 6840 GF15. PBT glass reinforced plastic. |
| Koruma sınıfı | IP66 and IP67 for top (outside the host), IP21 for bottom (inside the host), UL NEMA 4X |
| Montaj | M50 screw and nut (50.5 mm hole needed) |
| Maks.Mesafe | 100 metre |
| Anten | Dahili |
| Konektör | Included plug connector (2x9p; 3.5mm, Phoenix DFMC 1.5/9-ST-3.5, push-in spring connection) |
| Titreşim Uyumluluğu | Sinosodial vibration test according to IEC 60068-2-6:2007 and with extra severities; Number of axes: 3 mutually perpendicular (X:Y:Z), Duration: 10 sweep cycles in each axes, Velocity: 1 oct/min, Mode: in operation, Frequency: 5-500 Hz, Displacement ±3.5 mm, Acceleration: 2g. Shock test according to IEC 60068-2-27:2008 and with extra severities; Wave shape: half sine, Number of shocks: ±3 in each axes, Mode: In operation, Axes ± X,Y,Z, Acceleration: 30 m/s2 , Duration: 11 ms. |
| Sertifikalar |
|
| Europe | ATEX: ATEX Category 3, zone 2 according to EN60079-15, product marking: EX II 3 G nA IIC T4. CE, 2014/53/EU Radio Equipment Directive (RED) |
| USA | FCC 47 CFR part 15, subpart B. UL: Ind. Cont. Eq. also Listed Ind. Cont. Eq. for Haz. Loc. CL1, DIV 2, GP A,B,C,D, T4. UL file: E203225 |
| Canada | ICES-003 |
| Japan | MIC |
| Other countries | Brazil, Australia, Colombia, Türkiye, Malaysia, Argentina, India, China, Korea, United Kingdom |
