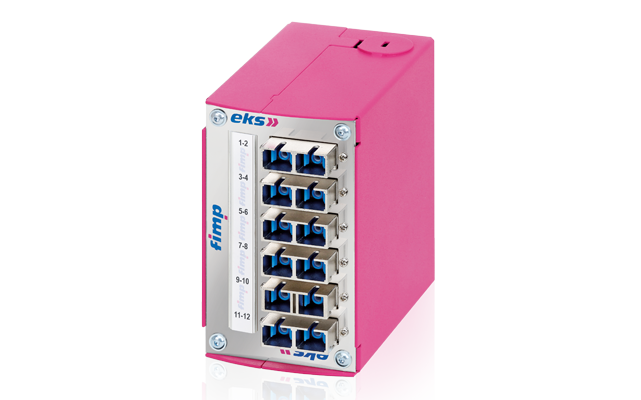

Sonlandırma Kutusu Splice Box

With 115 mm x 61 mm x 113 mm, our industrial splice box is by far smaller than comparable 19‘‘solutions.

Its inner values are really convincing as well so that the installation is quite simple and done very fast. FIMP is ready for splicing and contains splice tray, couplings, pigtails and cable gland. Regarding different couplings, you can choose from SMA, ST, SC, LC, FC-PC, SC-RJ and E-2000. The front panel and the splice cassette can be removed for splicing and since the cassette is magnetizable, it can easily be fixed onto a splice unit. The cassette has got a hole for splice units with a bolt.

The powder coated stainless steel housing is also magnetizable so that the splice box can easily be affixed to another housing or to a switch cabinet in case of no different tray. Furthermore, FIMP has got a clip for DIN rail mounting (35mm) and optional a kit for wall fastening. Thus, there are space-saving and flexible solutions for mounting our FIMP.
