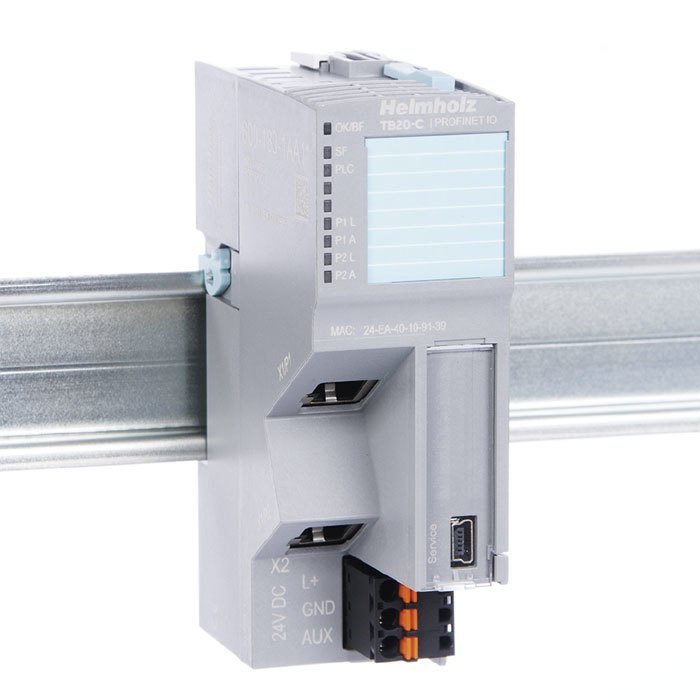

Ürün Bilgisi
• I/O device as per PROFINET IO (61158-6-10)
• Integrated two-port switch
• Full-duplex transmission rate of 100 Mbps
• 340 bytes of I/O data
• Up to 63 peripheral modules
• Modules can be replaced during operation (hot-plug)
• Conformance Class C
• Media Redundancy Protocol (MRP)
• Automatic addressing / hot-swapping (LLDP, DCP)
• Topology discovery
• I&M data
• Diagnostic alarms, process alarms, pull/plug alarms
• Integration using GSDML file
• 24 VDC power supply
• Integrated power supply unit for powering peripheral modules (2.5 A)
• Supplies the system’s I/O voltage (24 VDC)
• 7 LEDs, two of them bi-color
• USB device port for online diagnostics, configuring parameters, setup, and firmware updates with "TB20 ToolBox"
• TB20 ToolBox simulation for setting up the I/O system without a higher-level controller in order to test the system`s
operation (I/O check)
• Concealed "factory reset" switch for restoring the module to its factory settings
